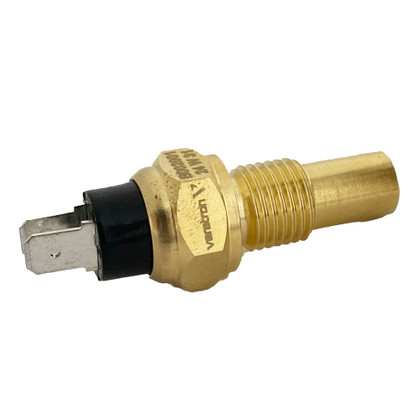

CAD DrawingCAD Drawing 2CAD Drawing 3Engine Oil Temperature Sensor - M16x1.5 Thread - 150°C Temp Range
These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.
Features:
- Function - Oil temperature, coolant temperature
- Length - 28.5mm (1-1/8")
- Thread - M16x1.5
- Calibration - 150°C
- Measurement Range - 150°C
- Output Signals - Resistive
- IP67
- Insulated ground pin
Manufacturer : Veratron
Manufacturer Part No : B002006
