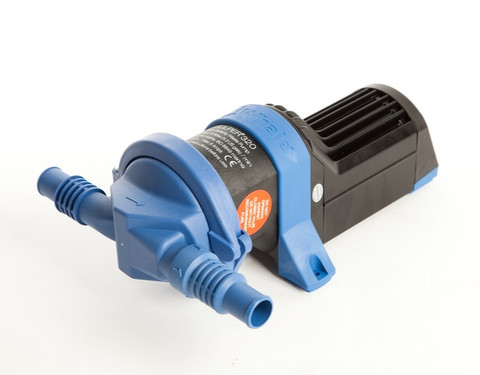

CAD DrawingCAD Drawing 2CAD Drawing 3Whale BP2052 Gulper 320 24v Bilge Pump
Model: BP2054- Remote mount pump for easy access
- Low current draw means longer battery life
- Multi directional head for easy installation
- Easy maintenance - non-choke valve, no filter to block or clean
- Self-primes and can run dry without damage
EASY ACCESS REMOTE BILGE PUMP FOR PROTECTION AND EASY INSPECTION
Specifications| Weight | 1.6kg (3.5lbs) |
| Fuse size | 5 amps |
| Cable size | 1.5mm (16AWG) |
| Hose connection | 19mm (¾") or 25mm (1") |
| Materials | Pump Head: Glass-Filled Nylon, Valves: Nitrile, Diaphragm: Santoprene |
| Max suction lift | 3m (10ft) |
| Max discharge head | 3m (10ft) |
| Warranty | 3 Years |
| Input Voltage | 24V d.c. |
