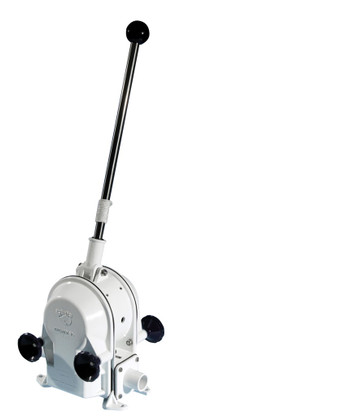

CAD DrawingCAD Drawing 2CAD Drawing 3Whale Gusher 30 Manual On Deck Bilge Pump
Model: BP3000- Top Performance 117 ltrs/min (31 US Gals)
- Reliability - fully enclosed twin diaphragms
- Efficient operation, double acting pumps on to and fro strokes
- Pumps oily bilge water with ease
- Robust design, corrosion resistant powder coated aluminium alloy
LARGEST CAPACITY MANUAL BILGE PUMP IN THE WHALE RANGE
Specifications| Weight | 5.05kg (11.1lbs) |
| Hose connection | 38mm (1½") |
| Materials | Pump Body: Marine Grade LM6 Aluminium Alloy (epoxy coated), Diaphragm: Neoprene, Bushes: Acetal, Handwheels: Nylon, Fasteners: Stainless Steel |
| Maximum suction lift | 4m (13ft) |
| Maximum discharge head | 4m (13ft) |
| Discharge head | 0.5m (1.5ft) |
| 40 Strokes per minute | 75 ltrs/min (20 US Gals) |
| 70 Strokes per minute | 117 ltrs/min (31 US Gals) |
| Warranty | 5 Years |
