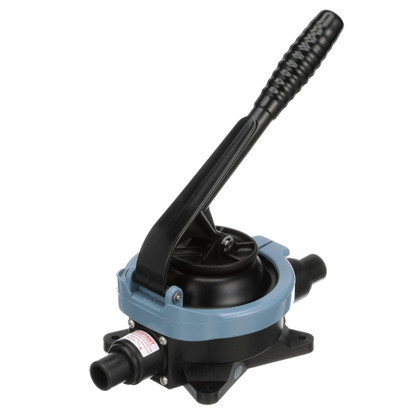

CAD DrawingCAD Drawing 2CAD Drawing 3Whale Gusher Urchin Manual On DeckMount Bilge Pump
Model: BP9021- Top performance 55 ltrs/min (14.5 US Gals)
- Multiple mounting options
- Compact design, ideal for confined spaces
- Clamp ring easily removed for pump head rotation and quick maintenance
- Versatility of design - dual size ports
COMPACT BILGE AND WASTEWATER TRANSFER PUMP
Specifications| Weight | 0.7kg (1.5lbs) |
| Hose connection | 25mm (1") or 38mm (1½") |
| Materials | Pump Body: Glass-filled Polypropylene, Clamp Ring: Acetal, Diaphragm: Neoprene, (Nitrile® option available), Operating Lever BP9005: Glass-filled Nylon, Handle (BP9021 and BP9013 only), Springs, Fasteners: Stainless Steel |
| Maximum suction lift | 4m (13ft) |
| Maximum discharge head | 3m (10ft |
| Warranty | 5 Years |
