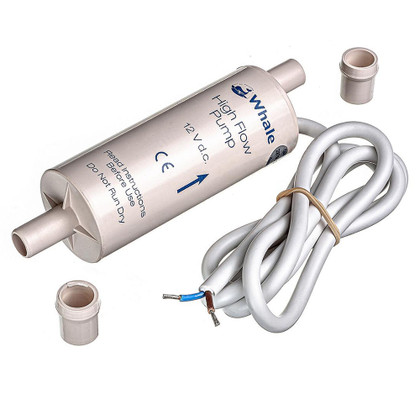

Whale Inline Booster High Flow Electric Galley Pump - 12V

Whale Inline Booster High Flow Electric Galley Pump - 12V

No reviews yet Write a Review
$36.94
SKU:
CW102284
Weight:
1.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Inline Booster High Flow Electric Galley Pump - 12V

This high-performance whale pump fits inline to increase the flow rate.

Features:

  • The narrow design is ideal for dropping into the water tank
  • Compact, quiet, lightweight design for use with pressure switch and microswitch systems
  • An inexpensive way to upgrade a manual water system
  • Also suitable for pumping diesel
  • Low power consumption

Specifications:

  • Pump Type: Inline
  • Weight: 015 kg (0.3 lbs.)
  • Voltage: 12 VDC
  • Recommended Fuse Size: 5 amps
  • Cable Length: 1m (3 ft.)
  • Hose Connection: Suitable for 10 mm (38 in.) or 13 mm (1/2 in.) flexible hose use WX1511B (stern adapter 11-15 mm) and connect WX1504 (15 mm (5/8 in.) equal straight
  • Filter Included: No
  • Length: 129 mm (5-1/16 in.)
  • Width: 36 mm (1-7/16 in.)

Materials:

  • Pump Body: ABS
  • Seal: Nitrile
  • Strainer: Polyurethane
  • Impeller: PBT
  • Cable: PVC

Performance:

  • Discharge Head: Flow rate per minute/current draw @ 12VDC
  • 0 m (0 ft.): 15.8 liters (4 US gallons) 3.8 amps
  • 1 m (3 ft.): 14.8 liters (4 US gallons) 3.7 amps
  • 3 m (10 ft.): 12.8 liters (3.5 US gallons) 3.5 amps

1 Year Warranty:

  • CE certified
  • ISO 88846
  • ISO 10133
  • ABYC H-23
  • IP67

Manufacturer : Whale Marine
Manufacturer Part No : GP1692
