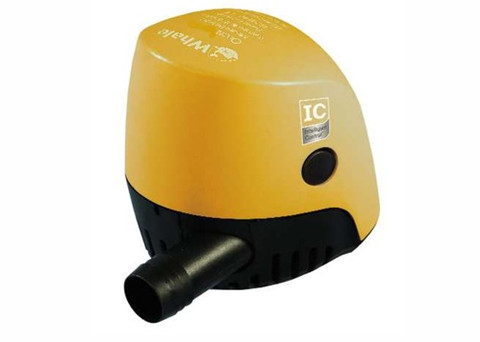

CAD DrawingCAD Drawing 2CAD Drawing 3Whale Orca 1300GPH Bilge Pump 24v
Model: BE1484- Simple to install, built-in automatic sensor. No separate bilge switch required
- Low current draw means longer battery life
- Efficient - large filter ensures maximum surface area exposed to bilge water
- Neat fit in compact bilge areas
- Easy maintenance - simply unclip cover to maintain
COMPACT, POWERFUL AND AUTOMATIC
Specifications| Weight | 0.9kg (2.0lbs) |
| Fuse size | 5 amps |
| Cable size | 1.5mm)(16AWG) |
| Hose connection | 25mm (1") / 28mm (11/ ") stepped port 8 |
| Materials | Pump Body: ABS, Seals: Nitrile, Impeller: Acetal |
| Performance | |
| Max discharge head | 4.5m (14.8ft) |
| Open flow rate | 82 ltrs/min (1300 US GPH) |
| Flow rate at 1m (3ft) head | 65 ltrs/min (1100 US GPH) |
| Warrany | 1 Year |
| Input Voltage | 24V d.c. |
