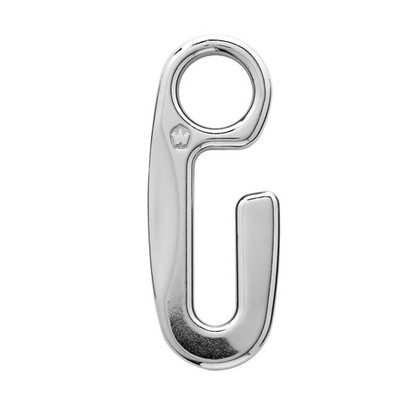

CAD DrawingCAD Drawing 2CAD Drawing 3Chain Grip - For 10mm Chain - 3/8" - 103mm Length - 4-1/16"
Features:
- For a 10mm chain
- Perfect for ensuring safe anchoring by easing the tension on the anchor chain
- Protects the boat by reducing the chafe of the chain on the rub rail and roller chock
- Positioned between two links of the chain (single-handed operation)
- Optimized design to avoid accidental release of the chain
- One piece with nonmoving parts
- Forged in Duplex stainless steel grade (increased mechanical & corrosion resistance)
Applications:
- Mooring
Specifications:
- Materials: Duplex stainless steel grade
Dimensions:
- Rope size: (mm) 22
- Length: (inch) 4 1/16" / (mm) 103
- Working load: (lb) 1580 / (kg) 720
- Breaking load: (lb) 2820 / (kg) 1280
- Weight: (lb) 0.344 / (g) 156
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Manufacturer : Wichard Marine
Manufacturer Part No : 29955
