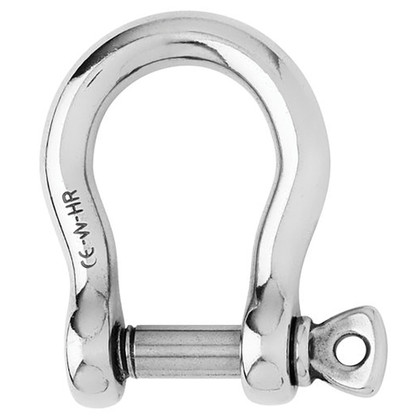

CAD DrawingCAD Drawing 2CAD Drawing 3HR Bow Shackle - 24mm Diameter - 15/16"
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 28210 / (kg) 12800
- WLL: (lb) 15430 / (kg) 7000
- Breaking load: (lb) 77160 / (kg) 35000
- Weight: (lb) 3.761 / (kg) 1.706
Dimensions:
- A: (inch) 4 1/4" / (mm) 108
- B: (inch) 1 57/64" / (mm) 48
- C: (inch) 15/16" / (mm) 24
- D: (inch) 1 27/32" / (mm) 47
- D diameter: (inch) 15/16" / (mm) 24
- E: (inch) 25/32" / (mm) 20
- M: (inch) 4 41/64" / (mm) 118
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Manufacturer : Wichard Marine
Manufacturer Part No : 11249
