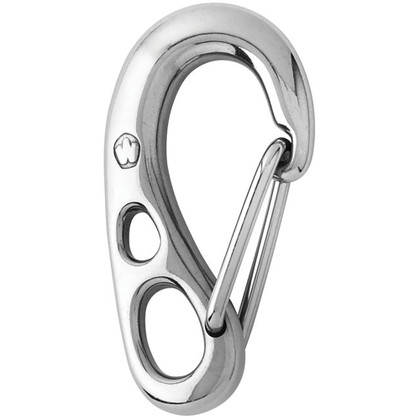

CAD DrawingCAD Drawing 2CAD Drawing 3HR Safety Snap Hook - 100mm Length - 3-15/16"
Features:
- HR 17.4 PH stainless steel grade forged snap hook
- Various applications on board
- Outstanding working and breaking loads
- Modern design
Applications:
- Various uses on board: fastening applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb)3700 / (kg) 1680
- Breaking load: (lb) 8810 / (kg) 4000
- Weight: (lb) 0.368 / (g) 167
Dimensions:
- A: (inch) 43/64" / (mm) 17
- B: (inch) 35/64" / (mm) 14
- Length: (inch) 3 15/16" / (mm) 100
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Manufacturer : Wichard Marine
Manufacturer Part No : 02382
