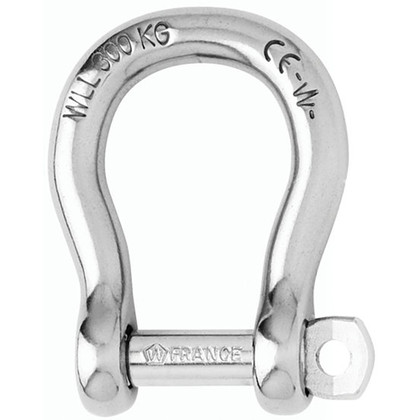

Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"

Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"

No reviews yet Write a Review
$159.87
SKU:
CW97633
Weight:
1.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"

Features:

  • Bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking
  • Part # 01247 is not self-locking

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 7050 / (kg) 3200
  • WLL: (lb) 4400 / (kg) 2000
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 1.19 / (g) 540

Dimensions:

  • A: (inch) 2 3/4" / (mm) 70
  • B: (inch) 1 17/64" / (mm) 32
  • C: (inch) 35/64" / (mm) 14
  • D: (inch) 1 17/64" / (mm) 14
  • D diameter: (inch) 5/8" / (mm) 16
  • E: (inch) 19/32" / (mm) 15
  • M: (inch) 3 11/32" / (mm) 85

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Manufacturer : Wichard Marine
Manufacturer Part No : 01247
