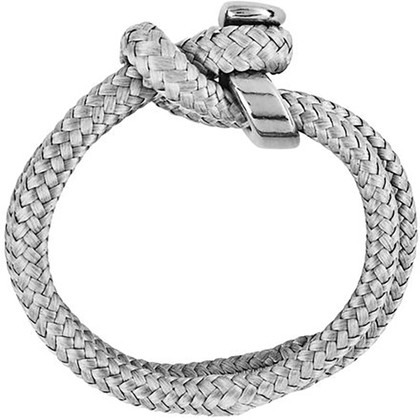

Softlink 5.0 Soft Shackle - 5mm Diameter - 13/64" - 90mm Length - 3-35/64"
Features:
- SoftLink is a soft shackle developed by Wichard for recreational sailors looking for performance and ease of use.
- For the same strength, SoftLink is 4 or 5 times lighter than a 316L stainless steel shackle.
- No knowledge of ropework required
- Replaces shackles and snap hooks
- Easy to fit and easy to open
- Remarkably light and strong
- Re-usable
- 3 sizes available
Applications:
- Fastenings
- Replaces shackles and snap hooks
Specifications:
- Materials: 316L stainless steel grade Dyneema SK78
Dimensions:
- Loop diameter: (inch) 13/64" / (mm) 5
- Loop length: (inch) 3 35/64" / (mm) 90
- Working load: (lb) 8370 / (kg) 3800
- Breaking load: (lb) 11020 / (kg) 5000
- Weight: (lb) 0.104 / (g) 47
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Manufacturer : Wichard Marine
Manufacturer Part No : 21225
