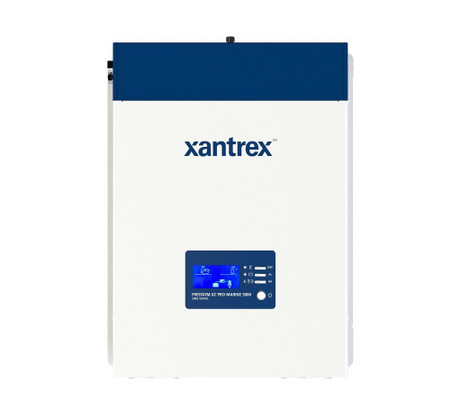

CAD DrawingCAD Drawing 2CAD Drawing 3Xantrex Freedom XC PRO Marine 3000
Model: 818-3015- Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
- True Sine Wave AC Power: For operation of sensitive and motor loads
- Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
- Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
- Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
- Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
- Battery Equalization: Maximizes flooded battery life
- Dead Battery Charging Down to 0 Vdc
- Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
- Easily configurable settings to charge any lithium ion battery
A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). SEAMLESS INTEGRATION WITH MICRO-C NMEA 2000 CONNECTOR
The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexi- ble AC power solution in the market today. It supports seamless integration with third party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.
Specifications| ELECTRICAL SPECS - INVERTER | |
| AC Output Operating Voltage Options | 120, 110, 108 Vac |
| Continuous Output Power | Continuous Power 3000 W @40 C True sine wave (TSW) |
| Continuous AC Output Current | 25 A |
| Surge Power | 6000 W (? 5 sec) |
| Frequency (Configurable) | 60 (or 50) Hz |
| Peak Efficiency | 91% |
| Full Load Efficiency | gretaer than or equal to 84% |
| DC Input Operating voltage range | 10.1 - 18.0 VDC |
| DC Input Max Non-Operating Voltage | 25.2 Vdc |
| DC Nominal Current at Full Load | 304 Adc |
| ELECTRICAL SPECS - BATTERY CHARGER | |
| Min Battery Voltage for Charging | 0.0 Vdc |
| Max DC Output Voltage | 18.0 Vdc (custom battery type) |
| Selectable DC Output Current | User Selectable: 5 - 150 A |
| Full Load Max AC Input Current | 25 Arms |
| Max DC Charge Current (selectable down to 5A) | 150A |
| Operating Input AC Pass-Through Voltage Range | 85-140 Vac |
| Safe Non-Operating Input AC Voltage Range | Up to 240 Vac RMS |
| Power Factor at Full Charge Rate | > 98% |
| GENERAL SPECS | |
| Operating Temperature Range | 4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C) |
| Storage Temperature Range | -40 to 158 F (-40 to 70 C) |
| Operating Humidity Range | 5 to 95% RH, non-condensing |
| Transfer Relay AC Current Rating | 50 A surge, 40 A continous |
| DC Input/Output Nominal Voltage (inverting/ Charging) | 12.0 Vdc |
| L x W x H (without flanges) | 15.4"(390 mm) x 10.8"(275 mm) x 4.9"(125 mm) |
| L x W x H (with flanges) | 16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm) |
What's in the Box:
- Freedom XC PRO 2000
- one set of plastic bushings for large DC cables
- one pre-installed DC ground enclosure lug
- two AC knockout hole plugs
