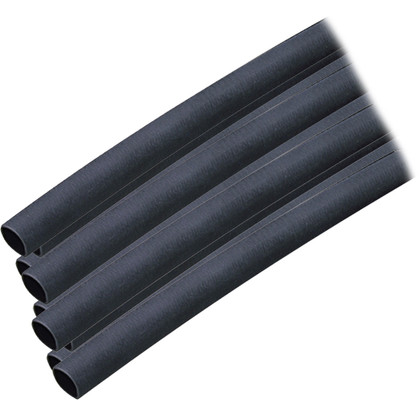

Adhesive Lined Heat Shrink Tubing (ALT) - 1/4" x 12" - 10-Pack - Black
Package of 10 Black 12"(30.5cm) long sections with a 1/4"(6.4mm) diameter
that shrinks to 5/64"(2mm)
Wire Range: 16-10 AWG
Features:
Product : ANCOR HEAT SHRINK TUBING 1/4" X 12 BLACK 10 PACK 16-10 AWG
Manufacturer : Ancor
Manufacturer Part No : 303124
UPC : 091887302301
Product : ANCOR HEAT SHRINK TUBING 1/4" X 12 BLACK 10 PACK 16-10 AWG
Package of 10 Black 12"(30.5cm) long sections with a 1/4"(6.4mm) diameter
that shrinks to 5/64"(2mm)
Wire Range: 16-10 AWG
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and
will not burn like PVC - Heat activated adhesive lining provides impervious seal to salt water,
oil, acids, and sunlight as well as providing strain relief - Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257°F / 125°C
- Operating temperature range of -40°C to 110°C
- UL 224
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product : ANCOR HEAT SHRINK TUBING 1/4" X 12 BLACK 10 PACK 16-10 AWG
Manufacturer : Ancor
Manufacturer Part No : 303124
UPC : 091887302301
