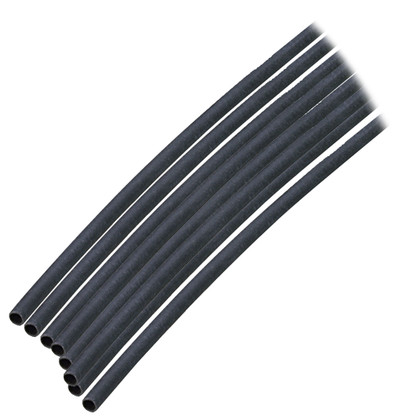

Adhesive Lined Heat Shrink Tubing (ALT) - 1/8" x 12" - 10-Pack - Black
Package of 10 Black 12"(30.5cm) long sections with a 1/8"(3.2mm) diameter that shrinks to 1/32"(0.8 mm)
Wire Range: <18 AWG
Features:
Product : ANCOR HEAT SHRINK TUBING 1/8" X 12" BLACK 10 PACK <18 AWG
Manufacturer : Ancor
Manufacturer Part No : 301124
UPC : 091887300086
Product : ANCOR HEAT SHRINK TUBING 1/8" X 12" BLACK 10 PACK <18 AWG
Package of 10 Black 12"(30.5cm) long sections with a 1/8"(3.2mm) diameter that shrinks to 1/32"(0.8 mm)
Wire Range: <18 AWG
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and
will not burn like PVC - Heat activated adhesive lining provides impervious seal to salt water,
oil, acids, and sunlight as well as providing strain relief - Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257°F / 125°C
- Operating temperature range of -40°C to 110°C
- UL 224
