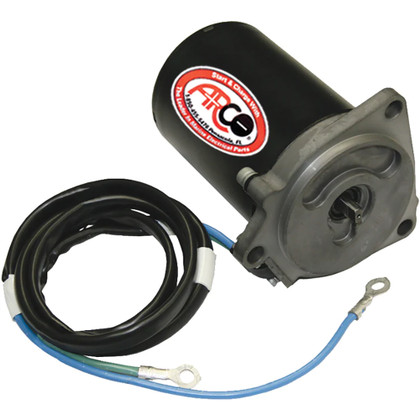

CAD DrawingCAD Drawing 2CAD Drawing 3Replacement Outboard Tilt Trim Motor - Yamaha, 2-Wire, 3 Bolt, Flat Blade Shaft
Replacement outboard tilt trim motor that will fit Yamaha 2002-2009 200, 225, 250 HP 4 Stroke, 2002-2009 200-300 HP 2 Stroke, 2-wire connection, 3-bolt mount, Includes O-ring, Ring Terminal Ends.
ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.
Features:
- Tilt trim motors are dynamically tested to ensure out-of-the-box performance
- Motor shafts induction case hardened at bearing surfaces for superior wear resistance
- Epoxy Powder coated for maximum insulation protection
Replaces:
MERCURY Tilt Trim Motor 888645T1
YAMAHA Tilt Trim Motor 60V-43880-00
YAMAHA Tilt Trim Motor 69J-43880-00
YAMAHA Tilt Trim Motor 69J-43880-01
SIERRA Tilt Trim Motor 18-6798
*ARCO Assurance 12-month part and labor warranty protection
Manufacturer : ARCO Marine
Manufacturer Part No : 6263
