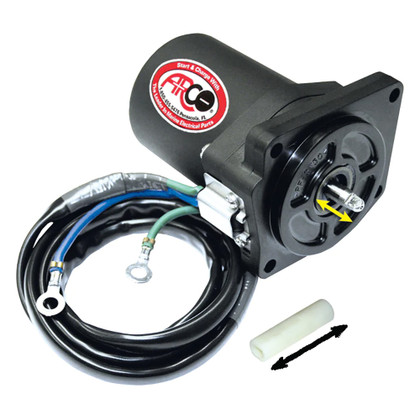

CAD DrawingCAD Drawing 2CAD Drawing 3Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft
Replacement outboard tilt trim motor that will fit Yamaha 2005-UP 75 HP 4 Stroke, 2005-UP 90 HP 4 Stroke, 2-wire connection, 4-bolt mount, Includes O-ring & Coupler, Ring Terminal Ends.
ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.
Features:
- Tilt trim motors are dynamically tested to ensure out-of-the-box performance
- Motor shafts induction case hardened at bearing surfaces for superior wear resistance
- Epoxy Powder coated for maximum insulation protection
Replaces:
YAMAHA Tilt Trim Motor 6D8-43880-00
YAMAHA Tilt Trim Motor 6D8-43880-01
YAMAHA Tilt Trim Motor 6D8-43880-09
*ARCO Assurance 12-month part and labor warranty protection
Manufacturer : ARCO Marine
Manufacturer Part No : 6258
