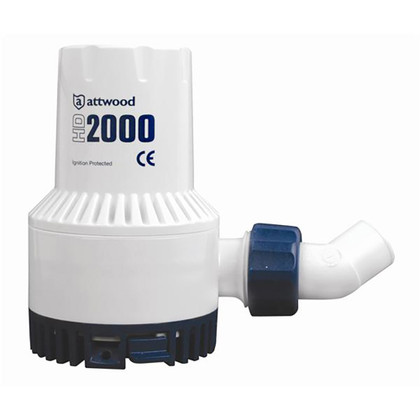

CAD DrawingCAD Drawing 2CAD Drawing 3HD2000 Heavy Duty Bilge Pump - 24V & 2000 GPH
Heavy-Duty Blige Pumps integrate the highest quality bearings, brushes, alloys, and magnets designed to withstand extreme usage cycles. The pump also employs an exclusive shaft and motor compartment, reducing wear and significantly extending pump life. Advanced resin compositions are incorporated in the exterior to resist chemicals such as engine oil, aggressive detergents, and hose plasticizers. Attwood’s Heavy Duty bilge has unsurpassed durability and efficiency in a compact design to ensure electrical energy is converted to the pump rather than excess heat. Attwood's highest capacity pump, the ball-bearing design provides for cooler motor operation and longer life. Also, this pump delivers over 2000 GPH at open flow while drawing less than 7-amps.
Features:
- High-quality bearings, brushes, alloys, and magnets
- Advanced resin compositions incorporated into the exterior
Specifications:
- Rated Voltage: 24
- Fuse Size: 7 Amp
- Hose Size: (inch) 1-1/8" inner diameter
Manufacturer : Attwood Marine
Manufacturer Part No : 4770-4
UPC : 022697477040
