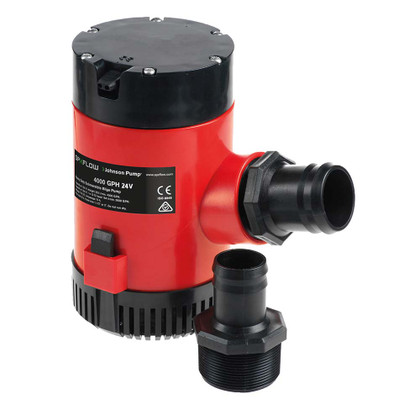

Johnson Pump Heavy Duty Bilge Pump 4000 GPH - 24V

Johnson Pump Heavy Duty Bilge Pump 4000 GPH - 24V

No reviews yet Write a Review
$197.98
SKU:
CW81461
UPC:
729321400848
Weight:
6.30 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Heavy Duty Bilge Pump 4000 GPH - 24V

Features:

  • Limited 1 Year Warranty
  • Capacities of 1600, 2200, or 4000 GPH
  • Liquid-cooled, 12-pole motor with double ball bearings for extended service life
  • The shaft of stainless steel (SS2343)
  • The impeller is carefully designed and tested to maximize head and flow
  • 4000 GPH features a robust motor design, mechanical shaft seal, high impact ABS plastic, and unique threaded port design
  • Universal base plate and choice of two different ports makes for a simple installation
  • Removable check valve included
  • Heavy Duty Submersible Pumps can be combined with either an electronic float switch or the Ultima Switch for automatic operation

Specifications:

  • Capacity 1.0M head (13.6V/27.2V): 164 l/min - 2600 GPH
  • Capacity straight (13.6V/27.2V): 252: l/min -4000 GPH
  • 24V
  • 7.5A
  • Fuse Size: 15A
  • Connection 1.5" and 2"

Manufacturer : Johnson Pump
Manufacturer Part No : 40084
UPC : 729321400848
