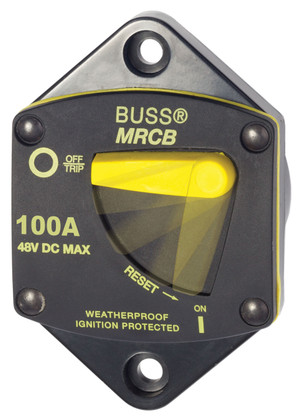

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 100A
Model: 7044-BSS- Combines switching and circuit protection into a single device*
- Clear, single lever operation
- ""Trip Free"" design cannot be held ""ON"" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - Safe for installation aboard gasoline powered boats
* Do not use as a switch where high inrush currents are expected.
Specifications| Amperage | 100A |
| Maximum Voltage | 48vDC |
| Mounting | Panel Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud Torque | 75 in-lb (8.47 Nm) |
| Interrupt Capacity | 5000A @ 12V 3000A @ 24V 1500A @ 42V |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Case Material | Thermoset Polyester |
| Circuit Breaker Class | Type III - switchable/manual reset - trip free |
| Mounting Hole | Accept #10 (M5) Screw |
| Terminal Stud Size | 5/16"" - 18 |
