Blue Sea 5025 6-gang Fuse Block St Ato/atc Negative Bus And Cover

Blue Sea 5025 6-gang Fuse Block St Ato/atc Negative Bus And Cover

No reviews yet Write a Review
$41.86
SKU:
WTBSS5025
UPC:
632085050252
Weight:
0.55 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

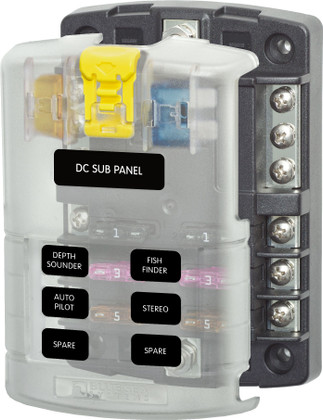

Blue Sea Systems ST Blade Fuse Block - 6 Circuits with Negative Bus and Cover

Model: 5025
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems"" Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately

The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.

Specifications
Circuits6
Maximum Amperage100A per block
30A per circuit
Maximum Voltage32V DC
Mounting#8 Screw (M4)
Negative Bus#10-32 Stud
Positive Bus#10-32 Stud
Recommended Torque24 in-lb (2.71 N m)
Screw Terminal Torque18 in-lb (2.03 Nm)
Screw Terminal Type#8-32 Screws with captive star lock washer
Weight0.55lb (0.25 kg)
Dimensions4.894"" h x 3.315"" w x 1.518"" d
