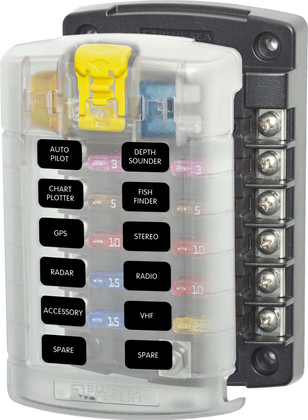

Blue Sea 5029 12-gang Fuse Block St Ato/atc With Cover

Blue Sea 5029 12-gang Fuse Block St Ato/atc With Cover

No reviews yet Write a Review
$46.53
SKU:
WTBSS5029
UPC:
632085050290
Weight:
0.68 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Cover

Model: 5029-BSS
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems"" Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
Specifications
Circuits12
Maximum Amperage100A per block
30A per circuit
Maximum Voltage32V DC
Mounting#8 Screw (M4)
Positive Bus#10-32 Stud
Recommended Torque24 in-lb (2.71 N m)
Screw Terminal Torque18 in-lb (2.03 Nm)
Screw Terminal Type#8-32 Screws with captive star lock washer
