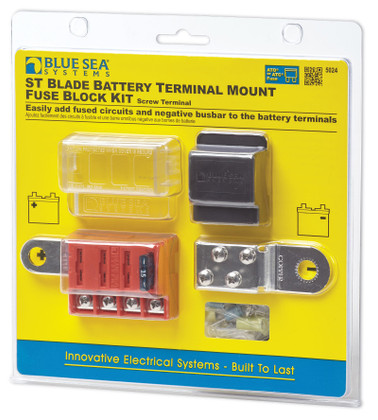

Blue Sea 5024 4-gang Battery Terminal Fuse Block St Ato/atc And Cover

Blue Sea 5024 4-gang Battery Terminal Fuse Block St Ato/atc And Cover

No reviews yet Write a Review
$33.29
SKU:
WTBSS5024
UPC:
632085050245
Weight:
0.55 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block Kit

Model: 5024
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Nylon insulated ring terminals included for each screw terminal
  • Accepts small format circuit labels
  • Insulating cover meets ABYC/USCG insulation requirements
  • Ignition Protected—meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Includes a 4-circuit negative busbar
  • Includes write on labels
  • Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications
Circuits4
Maximum Amperage100A per block
30A per circuit
Maximum Voltage32V DC
Bus MaterialTin-Plater Copper C11000
Mounting Hole3/8"" (M10) Stud
Screw Terminal Torque18 in-lb (2.03 Nm)
Screw Terminal Type#8-32
Weight0.50lb (0.23 kg)
