Blue Sea 8264 Traditional Metal DC Panel

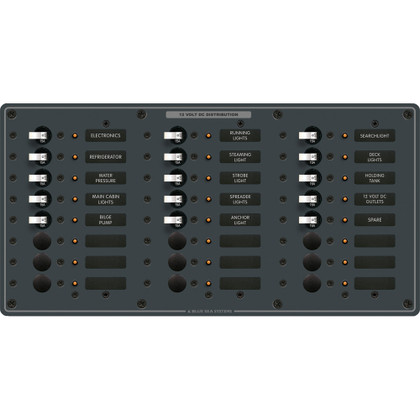

Blue Sea 8264 Traditional Metal DC Panel - 24 Positions

No reviews yet Write a Review

$661.38

Qty:

SKU:: CW20770
UPC:: 632085082642
Weight:: 7.00 LBS

Current Stock: 1

DOWNLOADS

Product PDF

Spec Sheet PDF

CAD Drawing

CAD Drawing 2

CAD Drawing 3

Description

8264 Traditional Metal DC Panel - 24 Positions

Features:

All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Specifications:

Positions: 24
Nominal Voltage: 12 VDC/24 VDC
Maximum Amperage: 100A per bus
Height: 7.50" (190.5 mm)
Width: 14.75" (374.65 mm)
Weight: 7.45lb. (3.38 kg)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
