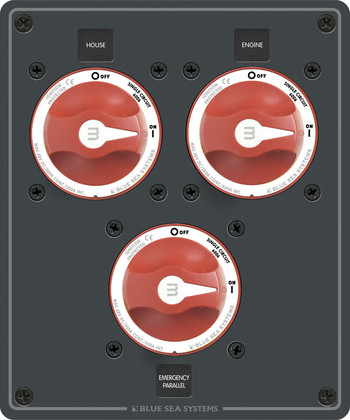

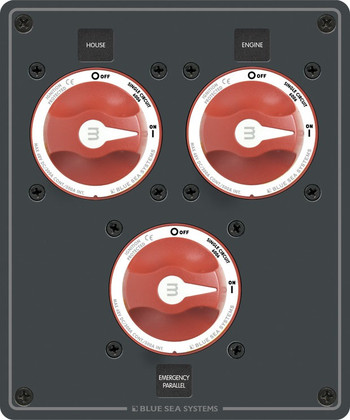

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Traditional Metal Dual Bank Battery Management Panel
Model: 8280-BSS- Isolates the Engine circuit from the House circuit
- Allows emergency cross connect between isolated battery banks
- Protects electronics from sags and spikes caused by engine cranking
| Maximum Voltage | 48V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 sec | 1500A |
| Cranking Rating 1 min | 775A |
| Height | 7.50in (190.5 mm) |
| Width | 6.25in (158.75 mm) |
| Depth | 2.25in (57.15 mm) |
| Weight | 3.20lb (1.45 kg) |
What's in the Box:
- 8280 Panel
- Instructions
