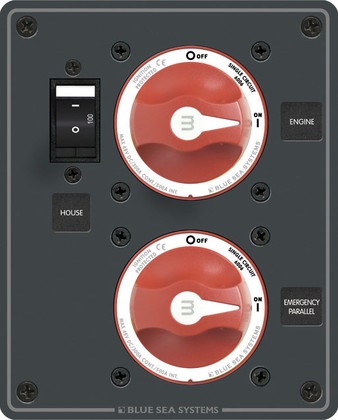

Blue Sea Dual Battery Bank Management Panel Main + 3 Position

Blue Sea Dual Battery Bank Management Panel Main + 3 Position

No reviews yet Write a Review
$188.49
SKU:
WTBSS8080
UPC:
632085080808
Weight:
2.20 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Blue Sea Dual Battery Bank Management Panel

Model: 8080-BSS
  • Isolates the Engine circuit from the House circuit
  • Allows emergency cross connect between isolated battery banks
  • Protects electronics from sags and spikes caused by engine cranking
Specifications
Maximum Voltage32V DC
Continuous Rating300A
Intermittent Rating500A (5 min)
Cranking Rating 10 sec1500A
Cranking Rating 1 min775A
Height6.50in (165.1 mm)
Width5.25in (133.35 mm)
Depth3.00in (76.2 mm)
Weight2.20lb (1 kg)

What's in the Box:
  • 8080 Panel
  • Instructions
