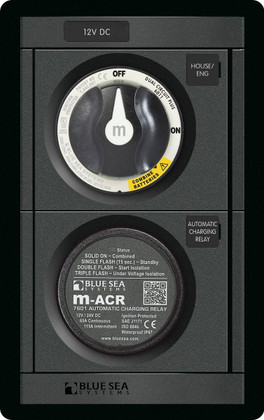

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Panel 360 Add-A-battery
Model: 1494-BSS- Easily manage multiple battery bank systems
- Isolates the Start circuit from the House circuit
- Allows emergency cross connect between isolated battery banks
- Protects electronics from sags and spikes caused by engine cranking
| Switch Type | M-ACR Automatic Charging Relay, 7601 M-Series Battery Switch, 6011 |
| Nominal Voltage | 12v DC |
| Height | 7.75in (196.85mm) |
| Width | 4.88in (123.95) |
| Depth | 3.25in (82.55mm) |
