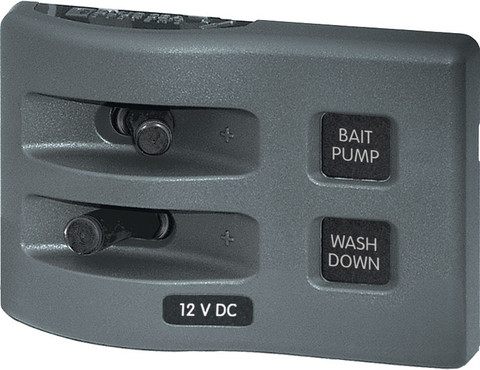

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position
Model: 4303-BSS- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- IP67 — protected against immersion up to 1 meter for 30 minutes
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck® Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won’t deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck® Switch Panel has all the rugged features of the proven WeatherDeck® Panel family however does not have the added cost of backlighting and circuit protection.
Specifications| Weatherproof | Waterproof |
| Positions | 2 |
| Nominal Voltage | 12V DC 24V DC |
| Circuit Protection | None |
| Maximum Amperage | 15A @ 12V DC (per circuit) |
| Material | Reinforced Polycarbonate |
| Height | 2.60in (66.04 mm) |
| Width | 3.88in (98.55 mm) |
| Depth | 2.50in (63.5 mm) |
What's in the Box:
- Panel
- 4138 - Boot x 2
- 4150 - Toggle Switch x 2
- Label kit
