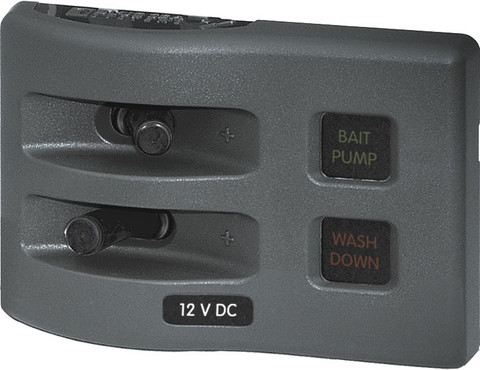

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel - Gray 2 Positions
Model: 4302-BSS- Panel front rated IP67 when properly mounted with watertight mounting gasket
- IP67 — protected against immersion up to 1 meter for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting circuit for remote switching and dimming
- Available in 2, 4, 6, and 8 circuit models
- Each panel can be mounted in four different orientations
- Integrated ATO/ATC fuse based circuit protection
- Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.
| Weatherproof | Waterproof |
| Positions | 2 |
| Nominal Voltage | 12vDC |
| Circuit Protection | Fuse |
| Maximum Amperage | 15A @ 12V DC (per circuit) |
| Panel Cumulative Rating | 30A |
| Backlit Label | Bicolored LED |
| Backlighting Amperage | 10mA /Illuminated Circuit |
| Backlighting Voltage | 12V DC |
| Material | Reinforced Polycarbonate |
| Dimensions H x W x D | 2.6in x 3.88in x 2.50in |
