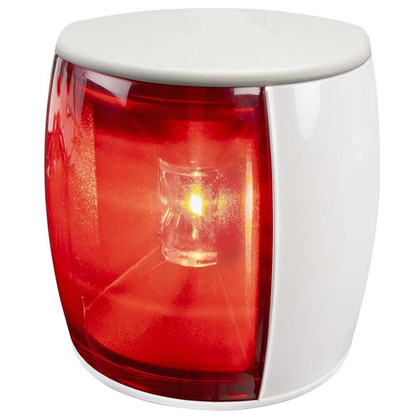

CAD DrawingCAD Drawing 2CAD Drawing 3NaviLED PRO Port Navigation Lamp - White Shroud - Red Lens - 3NM
This NaviLED PRO port lamp covers vessel requirements over 50m. NaviLED®PRO lamps are proven worldwide on commercial, military, and recreational vessels.
Ultra-Low Current Draw
This port lamp consumes less than 3.2W combined.
No bulbs, No Maintenance, Ultra Long Service Life
Hella marine LED technology has no filaments to break, making NaviLED®PRO lamps extremely shock- and vibration-proof for proven reliability and safety in demanding conditions.
Multivolt™ 9-33V DC
Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.
Fully Sealed for Life. IP 67 Certified
Each NaviLED®PRO lamp is a completely sealed unit. High-impact housings ensure durability from waves and impacts. Ultra-heavy-duty BSH versions use high-tech Grilamid® lenses to offer superior strength in extreme conditions.
Pre-wired with 2.5M of Twin-Core Marine Cable
High-quality cable assemblies for time-saving, completely sealed installations.
Specifications:
- Lamp Type: Port navigation
- Lens Color: Red
- Housing Color: White
- Material Description: High impact resistant acrylic lens
- Minimum Visible Distance: 3 Nautical Miles (Yachts and Powerboats)
- Cable: Pre-wired with 2.5M of twin-core marine cable
- Operating Voltage: Multivolt™ 9-33V DC
- Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts
- Power Consumption: Less than 3.2W combined.
- Degree of Protection: IP 67 - Completely Sealed
- Weight: 250g (including cable)
- Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ
Manufacturer : Hella Marine
Manufacturer Part No : 017460111
UPC : 9416325253280
