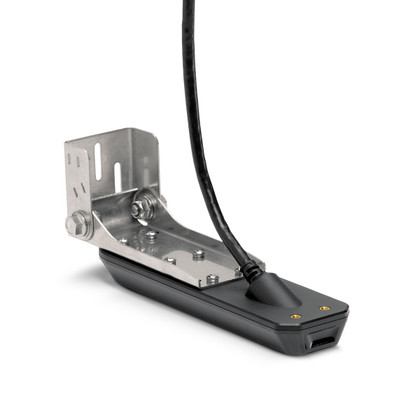

CAD DrawingCAD Drawing 2CAD Drawing 3Humminbird XM-14-HW-MSI-T
Model: 710292-1- This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2.
- This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2.
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
- MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20 feet cable.
Specifications| Transom | |
| Sonar Type | MEGA Imaging, Dual Spectrum |
| Current Models | SOLIX 10, SOLIX 12, SOLIX 15 |
- Related Items:
- AIRFF15K,HUM7201061
- Shipping Programs:
- Qualifies for Ground and 2 Day
- Prop 65:
- WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- Conditon:
- New unit
- Manufacturer:
- JOHNSON OUTDOORS INC
