CAD DrawingCAD Drawing 2CAD Drawing 3Humminbird XNT-14-HW-T
Model: 710285-1- This accessory is compatible with the following Humminbird products: SOLIX 10, 12, 15 — All Models.
- Side Imaging™ and Down Imaging™ units can support the XNT 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)

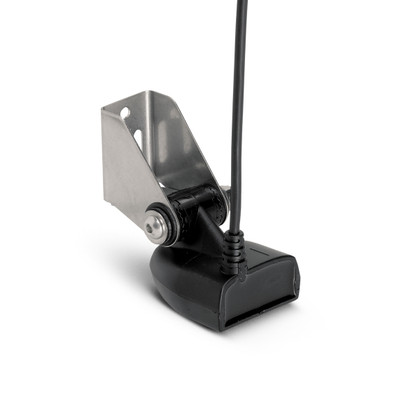

Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, all metal bracket and 20’ cable.
Specifications| Mount Type | Transom |
| Sonar Type | Dual Spectrum |
| Current Models | SOLIX 10, SOLIX 12, SOLIX 15 |
