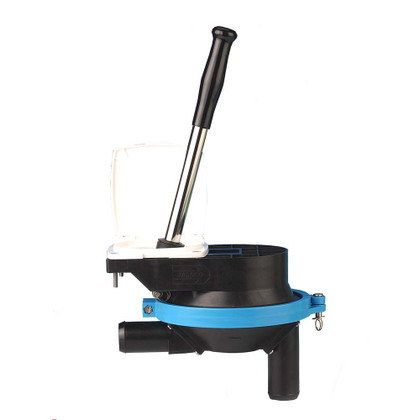

CAD DrawingCAD Drawing 2CAD Drawing 3Amazon Thrudeck Pump Manual Bilge Pump
Features:
- Connections: – for 25mm (1”) bore hose
- Dimensions: – 120mm high, 250mm wide, 210mm long with 260mm handle (nominal dimensions for variable pump configuration)
- Output: – up to 50 litres/minute (11 gallons/minute)
- Mounts through deck or through the bulkhead
- Light, compact pump with 16 port position variations
- Quick-release clamp ring for rapid disassembly
- Includes through deck kit and cover, with 4 mounting positions relative to the pump
- Stainless steel handle with bulkhead clips
- Self-priming up to 4m
- Packaged Dimensions: L:25.00 x H:16.00 x W:24.00cm
- Actual Weight: 1.41 Kg (Approx. 1.91 Kg packed)
Manufacturer : Jabsco
Manufacturer Part No : 29250-0000
