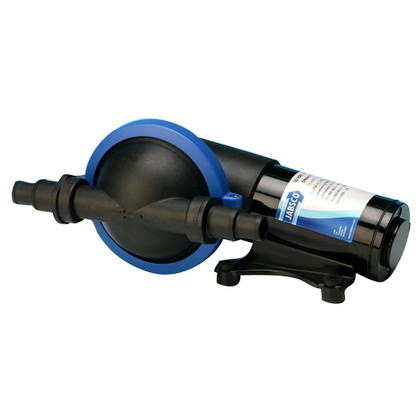

CAD DrawingCAD Drawing 2CAD Drawing 3Filterless Bilge/Sink/Shower Drain Pump - 4.2 GPM - 24V
Self-priming diaphragm pump 24V DC.
Features:
- Connections: - for 19mm (¾”) bore hose.
- Dimensions: - 294 mm long, 159mm wide, 132mm high
- Fuse Size: - 5(amp)
- Maximum Current: - 2.5(amps)
- Output - up to 16 litres/minute (3.5 gallons/minute). Maximum recommended total head 6m
- Robust, quiet single diaphragm design
- No strainer required
- Single diaphragm design allows extended dry running
- Self-primes up to 3m (9.5ft) vertical lift
- Multi-positional ports for easy mounting
- Rated for up to 30 minutes of continuous running
- Actual Weight: 2.98 Kg (Approx. 3.48 Kg packed)
WARNING: This product can expose you to chemicals including FORMALDEHYDE (GAS) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Manufacturer : Jabsco
Manufacturer Part No : 50880-1100
