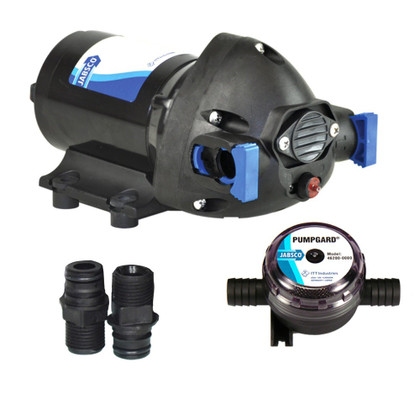

CAD DrawingCAD Drawing 2CAD Drawing 3Par-Max Shower Drain/General Purpose Pump - 3.5GPM-25psi-12VDC with Strainer
Long-life fully serviceable shower drain pump.
Features:
- 3.5 GPM (13.2 lpm) at 3ft (1m) head
- Self-priming up to 10ft (3m) allows mounting above wet bilges
- Diaphragm design allows extended dry running
- Continuous rated, heavy duty motor sealed for harsh bilge environments
- Thermal overload protection automatically stops the motor if it overheats due to overloading, with an auto re-start feature
- Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
- ISO 8849 MARINE (Bilge Pump Standard)
- Complete with Pumpgard
- Oil resistant elastomers
- Fitting: Connections for 3/4" (19mm ) ID hose
- Size: 7.7" long x 4.2" wide x 4.1" high (19.6cm x 10.6cm x 10cm)
- Weight: 5.0lb (2.1kg)
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Manufacturer : Jabsco
Manufacturer Part No : 32601-0092
UPC : 671880595667
