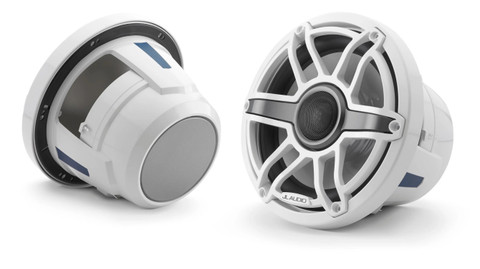

Model: M6-880X-S-GwGwM6 8.8-inch Marine Coaxial Speakers (125 W, 4 ohms) - Gloss White Trim Ring, Gloss White Sport Grille
The same principle that makes our 7.7-inch marine speakers dominate over conventional 6.5-inch designs is delivered in a more powerful dose in our M6-880X 8.8-inch coaxials.
These 8.8-inch diameter monsters offer significant performance advantages over our 7.7 inch models, and a huge advantage over conventional 6.5 inch marine coaxials. Thanks to 36% more cone area and almost double the excursion capability, the M6-880X's are capable of +6 dB greater low frequency output than our M6-770X 7.7-inch coaxial systems! The bass is so impressive that the M6-880X can be used without a subwoofer while still packing a very serious low-frequency punch. Used with a subwoofer, they offer vastly better dynamics and mid-bass impact than smaller speakers, making them the best choice when ultimate performance is desired.
To make sure that the high-frequencies sound just as good as the bass, our engineers have designed an oversized, 1.25-inch, silk dome tweeter for this model. This new tweeter plays louder, cleaner and extends lower in frequency to better mate with the 8.8-inch woofer. A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-880X Coaxial Systems can be used with as little as 50 W per channel, but for best audio performance we recommend amplifiers capable of between 50-250 W of continuous power per channel.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Sold as a pair.
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| General Specifications | |
| Continuous Power Handling (RMS) | 125 W |
| Recommended Amplifier Power (RMS) | 50 - 250 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 38 Hz - 20 KHz ± 3 dB |
| Coaxial Physical Specifications | |
| Frame Outer Diameter | 8.80 in / 224 mm |
| Bolt Hole Circle Diameter | 7.97 in / 202 mm |
| Frontal Grille Protrusion | 1.45 in / 37 mm |
| Mounting Hole Diameter | 7.375 in / 187 mm |
| Mounting Depth | 5.00 in / 127 mm |
