CAD DrawingCAD Drawing 2CAD Drawing 3Manual Leveling Control - Single Actuator

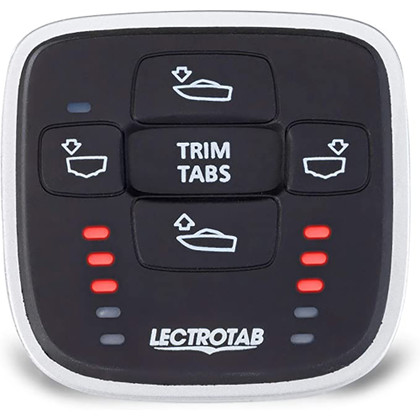

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.
The panel is a simple upgrade from existing rocker switches, and is suitable for 12V or 24V systems. The control panel is completely sealed, waterproof and provides a user-friendly control for a more enjoyable boating experience.
Features:
- Microprocessor based trim tab control with LED tab position indicators
- Single button press to move both tabs up or down simultaneously
- Rubber overlay with a sleek bezel design
- Automatic return to last tab position if ignition key is turned off and back on again
- Will not deteriorate in sunlight
- Automatic tab retraction and calibration with key or accessory switch off
- Easy upgrade from rocker switch style control or Oval control
- No external power module required for one actuator per tab system
- LED tab position indicators dim automatically in darkness and brighten in sunlight
Technical Specifications:
- Display Color - Black
- Actuators per Tab Plate - One (1)
- Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
- Mounting Hole Cutout - 2" (50 mm)
- Operating Voltage - 12 or 24 V
*Sold as an Individual
Manufacturer : Lectrotab
Manufacturer Part No : MLC-1
