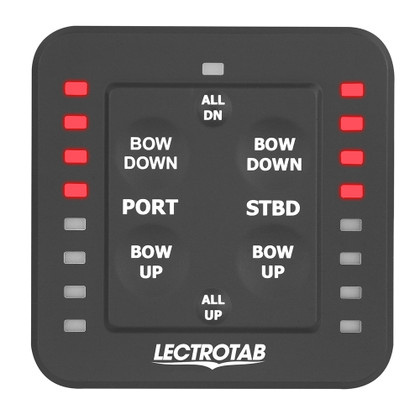

CAD DrawingCAD Drawing 2CAD Drawing 3One-Touch Leveling LED Control
Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.
Convenience, easy of use and reliability will make boating more enjoyable.
Features:
- Microprocessor-based trim tab control with LED tab position indicators
- Single-button press to move both tabs up or down simultaneously
- Automatic return to last tab position if the ignition key is turned off and back on again
- Completely sealed, completely waterproof and will not deteriorate in sunlight
- No external power module required for single or dual actuator per tab systems
- LED tab position indicators dim automatically in darkness and brighten in the sunlight
- Adjustable programming features
Technical Specifications:
- Display Color - Black
- Actuators per Tab Plate - One (1) or Two (2)
- Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Operating Voltage - 12 or 24 V
*Sold as an Individual
Manufacturer : Lectrotab
Manufacturer Part No : SLC-11
