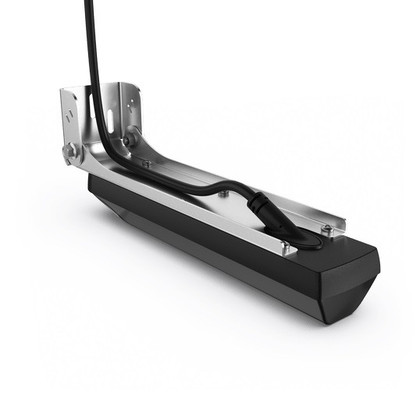

CAD DrawingCAD Drawing 2CAD Drawing 3Lowrance Active ImagingTM HD 3-IN-1 Delivers CHIRP, SideScanTM and DownScan ImagingTM in one transducer. Comes with a 7.6m (25ft) cable with 9 pin connector
Model: 000-16062-001- MHz Scanning
- High definition up to 1.2MHz SideScan and DownScan ImagingTM delivers the clearest images of fish and structure.
- CHIRP Sonar
- Experience superb clarity and target separation
- New FishRevealTM View
- Now available on SideScan* view, as well as DownScan ImagingTM.
- Flexible Technology
- Supports Medium and High CHIRP (83/200kHz) and 455/1.2MHz frequencies
- Improved Clarity
- Smart transducer design boosts your signal clarity.
- Wide-Ranging Compatibility
- Compatible with Lowrance HDS Pro. And, using an S3100 module, HDS LIVE, HDS Carbon and Elite FS.
Step up to the ultimate fishfinding clarity with new, high-definition Active ImagingTM HD sonar. Get the clearest images of fish and structure from Lowrance(R) CHIRP sonar, SideScan and DownScan ImagingTM, plus a new FishRevealTM SideScan* view, helping you identify fish targets on both sides of the boat, and beneath with DownScan FishReveal. *requires S3100 sonar module for Fish Reveal SideScan on HDS Pro Get game-changing clarity in the MHz range with new, ultra high-definition ActiveImagingTM HD.
Our clearest sonar ever, ActiveImagingTM HD delivers the highest-definition views of Lowrance(R) CHIRP, SideScan* and DownScan ImagingTM. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weed beds, ditches, drop-offs, and more
Get the best of CHIRP sonar and Imaging sonar on a single display with FishRevealTM. First introduced with DownScan ImagingTM, FishReveal is now available for the first time on SideScan*, making it quicker and easier to recognize fish targets alongside your boat. *The FishReveal SideScan view requires an optional S3100 sonar module
The ActiveImagingTM HD transducer not only delivers three key sonar technologies - Lowrance(R) CHIRP, SideScan, and DownScan ImagingTM - in one convenient package. It also features an all-new transducer design that boosts signal clarity and brings the underwater world to life on your screen.
*requires S3100 sonar module and relevant transducer on HDS Pro
