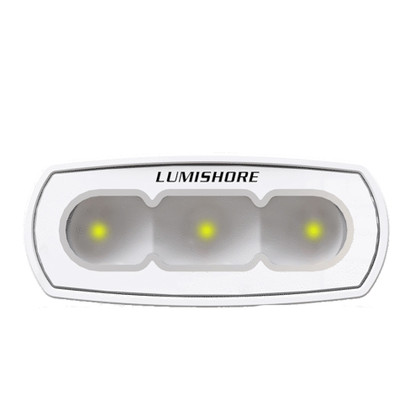

CAD DrawingCAD Drawing 2CAD Drawing 3ECLIPSE 4" Flood Light - White Housing
The ECLIPSE 4” Flood Light delivers 1,500 fixture lumens of crisp white light, with a wide 70°–90° oval beam for optimal deck, cockpit, or security lighting.
It's low-profile, articulating design mounts easily to cabin tops, T-tops, arches, transoms, and more. Built for the harshest conditions with IP68 protection and a marine-grade powder-coated aluminium housing. Dimmable as standard.
Specifications:
- Fixture Lumens (White): 1,500
- Number & Type Of LED: 3 x 10W White LED
- Control Options: On/Off Switch (Third party supplied) or ECLIPSE Command Center
- Electrical Installation: Simple 2-Wire Connection
- Supply Voltage Range: 10.5—31 V DC
- Max Current Draw 12/24V: 1.7 A/0.9 A
- Beam Angle: 70° - 90° Oval Beam
- Water Ingress Protection Rating: IP68
Manufacturer : Lumishore
Manufacturer Part No : 010-04458-00
UPC : 847772003200
