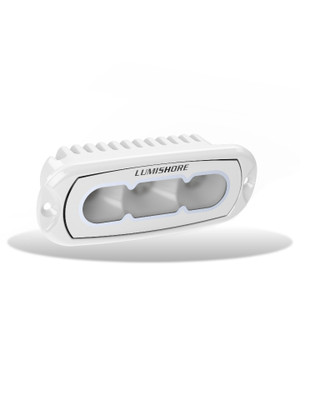

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore ECLIPSE 4in Flood LED Light Flush Mount White Finish
Model: 60-0519 / 010-04499-00Delivering 1,500 fixture lumens of crisp white light, the ECLIPSE 4"" Flush Fit Flood Light is built for flush mounting on cabin tops, T-tops, arches, transoms, and radar pedestals.
Its wide 70°—90° oval beam ensures bright, even coverage for deck lighting, cockpit visibility, or added security. Designed for the harshest marine environments, with IP68 protection and a marine-grade powder-coated aluminium housing. Dimmable as standard.
Specifications| Color | White (5500 K) |
| Fixture Lumens (White) | 1,500 |
| Number & Type Of LED | 3 x 10W White LED |
| Control Options | On/Off Switch (Third party supplied), ECLIPSE Command Center, EOS-LUX Command Center or Compatible MFD |
| Electrical Installation | Simple 2 Wire Connection |
| Supply Voltage Range | 10.5—31 V DC |
| Max Current Draw 12/24V | 1.7 A/0.9 A |
| Beam Angle | 70° - 90° Oval Beam |
| Water Ingress Protection Rating | IP68 |
| Warranty | 3 Years |
