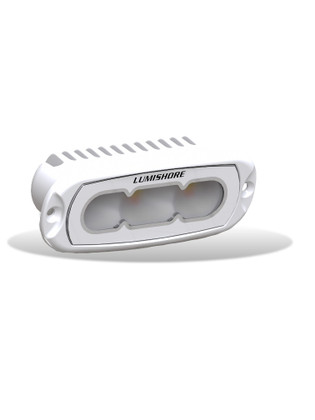

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore LUX 4in Flood LED Light Flush Mount White Finish
Model: 60-0520 / 010-04500-00Lumishore’s 4" Flush Fit Flood Lights deliver powerful CRGBW illumination in a sleek, low-profile unit. Designed for decks, cockpits, and exterior mounting points like T-tops, arches, and transoms, they offer a wide oval beam (70°—90°) and smooth, blended colors — including both warm and cold white, plus red, green, and blue.
Built for harsh marine environments with an IP68 rating and marine-grade aluminum housing. Control via switch, MFD, or Lumishore Display — with dimming as standard.
Specifications| Available colors | White Color Temperature Tunable (2700K to 6500K) and Full Spectrum RGB |
| Lumens | 2,360 |
| Fixture Lumens | 1,050 |
| Number & Type Of LED | Warm White, Cold White, Red, Green and Blue (5 Channel) |
| LED Power HICOB Array | Yes |
| Typical LED Life | 50,000+ Hours |
| Warranty | 3 Years |
| Electrical Installation | Simple 3 Wire Connection (see installation manual) |
| Housing Type | Powder Coated Aluminium Body with Frosted Lens |
| Driver | Multi-Channel Internal |
| Supply Voltage Range | 10.5—31 V DC |
| Max Current Draw 12/24V | 1.7 A/0.9 A |
| Beam Angle | 70° - 90° Oval Beam |
| Water Ingress Protection Rating | IP68 |
