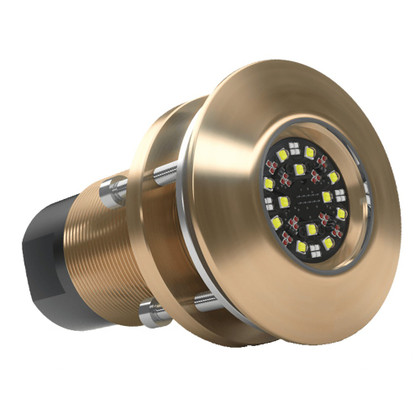

CAD DrawingCAD Drawing 2CAD Drawing 3EOS TIX404 Interchangeable Thru-Hull
The fully controllable color change TIX404 underwater light delivers the greatest range of colors and offers a powerful 7,500 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
All Lumishore Thru-Hulls are ‘flush-fit’ with extremely low profiles, suitable for transom, side, and bottom mounting. TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Specifications:
- Available Colors: Full EOS Color Change (RGBW)
- Lumens: 16,875
- Fixture Lumens (White): 7,500
- Number & Type Of LED: White–12×10W / Green–12×3W / Blue–12×3W / Red–16×3W
- LED Power - HICOB Array: Yes
- Typical LED Life: 50,000+ Hours
- Warranty: 3 Years
- User Control Options: Certified MFD Screen EOS-LUX-SUPRA Display WiFi Control from Smart Phone or Connected Device (via MFD or 2204i Wifi)
- Electrical Installation: Plug-and-Play Connections
- Housing Type: Marine Bronze Body with Borosilicate Glass Lens
Manufacturer : Lumishore
Manufacturer Part No : 010-04529-00
UPC : 847772004054
