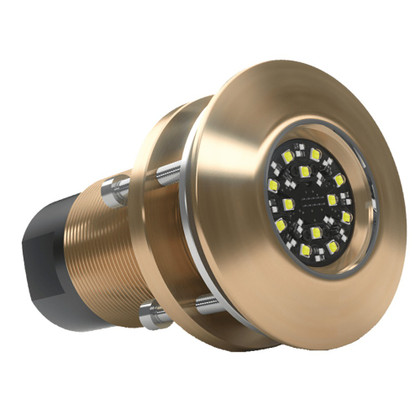

CAD DrawingCAD Drawing 2CAD Drawing 3SUPRA TIX404 Interchangeable Thru-Hull
Lumishore's TIX404 is a dual-color, full-power underwater LED light that produces 8,150 fixture lumens and an ultra-wide 110° beam angle!
Available in blue and white. Easily switch between colors, fade colors, adjust brightness, and strobe at two speeds.
TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Controlled by the SUPRA i-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge Module.
Suitable for transom, side, and bottom mounting.
Specifications:
- Available Colors: Dual Color (Blue & White)
- Lumens: 18,340
- Fixture Lumens (White): 8150
- Number & Type Of LED: White - 12 x 10W, Blue - 24 x 3W
- LED Power - HICOB Array: Yes
- Typical LED Life: 50,000+ Hours
- Warranty: 3 Years
- User Control Options: SUPRA i-Connect Hub & Switch Certifi ed MFD Screen* EOS-LUX-SUPRA Display WiFi control from Smart phone or Connected Device (via MFD or local WiFi Network)*
* Requires SUPRA Bridge Module
Manufacturer : Lumishore
Manufacturer Part No : 010-04526-00
