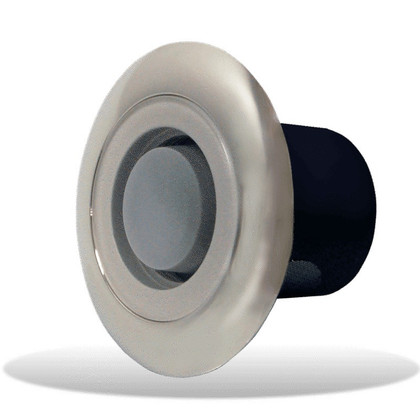

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore LUX CL25 Courtesy Full Spectrum CRGBW 12/24vDC 5 Watt Chrome Bezel
Model: CL25LUX Courtesy Lights are perfect for lighting external walkways, stairs and architectural elements of a boat, while at the same time creating a warm and comfortable atmosphere.
The CL25 offers full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tuneable (from 2700k to 6500k) in a single courtesy light unit.
Completely sealed and IP68 rated, the CL25 is suitable for interior and exterior installation. Control by a momentary switch, or upgrade to full integration with your compatible MFD and/or Lumishore Display.
Dimmable as standard and powered by the LUX Light Control Module.
Specifications| Available colors | Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K |
| Ingress Protection | IP68 |
| Supply Voltage Range | 10.5 — 31V DC |
| Max Current Draw | 0.1A / 0.05A |
| Front diameter (Bezel) | 45mm |
| Hole diameter for fitting | 25mm |
| Mechanical installation | Screw fixings |
| Number of Courtesy Lights per control module | 16 |
| Control options | Momentary switch with option to upgrade to full MFD and optional Lumishore Display |
| Warranty | 3 Years |
What's in the Box:
- One (1) LUX Courtesy Light CL25
