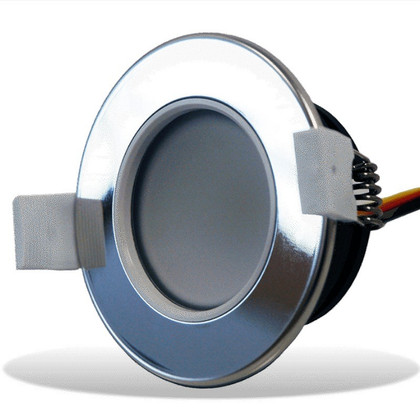

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore LUX DL65 Downlight Full Spectrum CRGBW 12/24vDC 5 Watt Chrome Bezel
Model:LUX Downlights are the perfect solution for interior or exterior overhead lighting needs - designed for all cabin ceiling heights!
Full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tuneable (from 2700k to 6500k) in the same light unit.
Finished in a Chrome Bezel and a hard-anodized aluminium body to complement the style of your boats interior/exterior.
Controlled by a momentary switch, or upgrade to full integration with your compatible MFD and/or Lumishore Display.
LUX Downlights are dimmable as standard and powered by the LUX Light Control Module.
Specifications| Available colors | Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K |
| Ingress Protection | IP68 |
| Supply Voltage Range | 10.5 — 31V DC |
| Max Current Draw | 0.6A / 0.3A |
| Front diameter (Bezel) | 82mm |
| Hole diameter for fitting | 65mm |
| Mechanical installation | Screw fittings (outdoor), spring clips (indoor use only) |
| Number of Downlights per control module | 16 |
| Control options | Momentary switch with option to upgrade to full MFD and optional Lumishore Display |
| Warranty | 3 Years |
What's in the Box:
- One (1) LUX Downlight DL65
