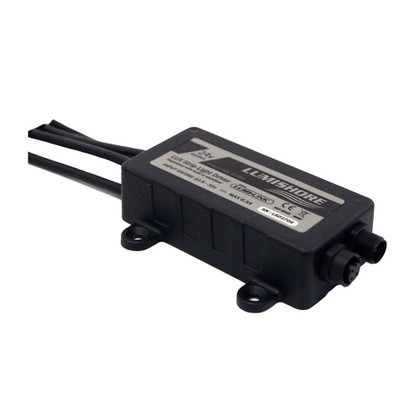

CAD DrawingCAD Drawing 2CAD Drawing 3LUX Strip Light Driver - Regulated with Built-In Stabilizer
Features:
- Full Spectrum RGB and White Color Temperature Tunable (2700K to 6500K)
- Full MFD Connectivity for LUX Lighting
- Specially Designed for Ease of Installation
- Plug and Play Connections
Specifications:
- Driver: Multi-Channel Internal Driver
- Supply Voltage Range: 10.5 - 31 V DC
- Max Current Draw (12/24V DC): 5.6A / 2.8A
- Surge Protection: Yes
- ATRB (Automatic Thermal Roll Back): Yes
- Low Voltage Protection: Yes
- Auto Power Control: Yes - Intelligent Multi-Channel Power Management
- “Soft Start” Electronics Protection: Yes
- Reverse Polarity Protection: Yes
- In Rush Current Protection: Yes
- Power Line Noise Suppression: Yes
- Max Cable Length to start of LED strip: 5m (16.8’)
- Number of LED strips per Driver: Multiple LED Strips - up to 10m (32.8’) total strip length
- ISO 8846 (Ignition Protection): Yes
Manufacturer : Lumishore
Manufacturer Part No : 010-04438-00
UPC : 847772002449
