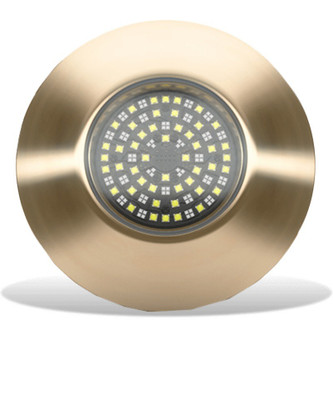

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore SUPRA TIX1604 Interchageable Thru Hull Blue/White LED
Model: SUPRA TIX1604 / 010-04528-00The TIX1604 is the ultimate choice for those who want full power dual-colored lights without sacrificing brightness! This model packs a powerful 20,000 fixture lumens into a low profile, interchangeable thru-hull and an ultra-wide 110 deg beam angle.
Available in blue and white. Easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.
TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Controlled by the SUPRA i-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge Module.
Suitable for transom, side and bottom mounting.
Specifications| DUAL COLOR (BLUE & WHITE) | |
| LUMENS | 45,000 |
| VERIFIED FIXTURE LUMENS (WHITE) | 20,000 |
| NUMBER AND TYPE OF LED | White - 48 x 10W, Blue - 108 x 3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 110 deg |
| DRIVER | Multi-Channel Internal Driver |
| SUPPLY VOLTAGE | 24 V DC |
| MAX CURRENT DRAW | 6.5A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS | i-CONNECT HUB & SWITCH OR YOUR MFD WITH THE SUPRA BRIDGE |
| LIGHTS SYNCHRONIZED | YES |
| BRIGHTNESS ADJUST | YES |
| STROBE | YES |
| SYNCHRONIZED STROBE | YES |
| FADE MODE | YES |
| SYNCHRONIZED FADE MODE | YES |
| WARRANTY | 3 YEARS |
What's in the Box:
- One (1) SUPRA TIX1604 Light with Built-in Driver
