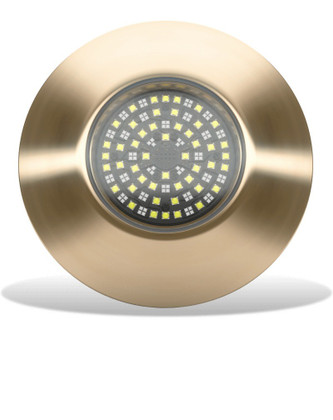

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore SUPRA THX804 Thru-Hull Mount and Driver Blue/White LED
Model: THX804 / 010-04518-00The THX804 is a dual-color (blue and white), full power underwater LED light that produces 13,500 fixture lumens and an ultra-wide 110 deg beam angle for the ultimate halo-effect.
Easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.
Control with the SUPRA i-Connect Hub & Switch. For direct control of your lights from your compatible MFD and/or optional Lumishore Display, add the SUPRA Bridge.
THX models feature a standard 1in fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side and bottom mounting.
Specifications| DUAL COLOR (BLUE & WHITE) | |
| LUMENS | 30,375 |
| VERIFIED FIXTURE LUMENS (WHITE) | 13,500 |
| NUMBER AND TYPE OF LED | White - 36 x 10W, Blue - 48 x 3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 110 deg |
| DRIVER | MULTI-CHANNEL EXTERNAL DRIVER |
| SUPPLY VOLTAGE | 12/24 V DC |
| MAX CURRENT DRAW | 8.8A/4.4A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS | i-CONNECT HUB & SWITCH OR MFD WITH THE SUPRA BRIDGE |
| LIGHTS SYNCHRONIZED | YES |
| BRIGHTNESS ADJUST | YES |
| STROBE | YES |
| SYNCHRONIZED STROBE | YES |
| FADE MODE | YES |
| SYNCHRONIZED FADE MODE | YES |
What's in the Box:
- One (1) SUPRA THX804 Light
- One (1) Driver
