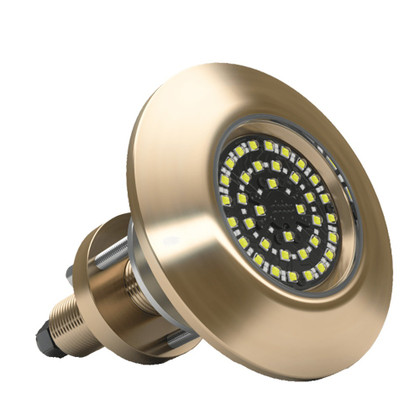

CAD DrawingCAD Drawing 2CAD Drawing 3SUPRA THX804 Thru-Hull Light & Driver
The THX804 is a dual-color (blue and white), full-power underwater LED light that produces 13,500 fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.
Easily switch between colors, fade colors, adjust brightness, and strobe at two speeds.
Control with the SUPRA i-Connect Hub & Switch. For direct control of your lights from your compatible MFD and/or optional Lumishore Display, add the SUPRA Bridge.
THX models feature a standard 1" fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side, and bottom mounting.
Specifications:
- Available Colors: Dual Color (Blue & White)
- Lumens: 30,375
- Fixture Lumens (White): 13,500
- Number & Type Of LED: White - 36 x 10W, Blue - 48 x 3W
- LED Power - HICOB Array: Yes
- Typical LED Life: 50,000+ Hours
- Warranty: 3 Years
- User Control Options: SUPRA i-Connect Hub & Switch Certified MFD Screen* EOS-LUX-SUPRA Display WiFi control from Smart phone or Connected Device (via MFD or local WiFi Network)*
* Requires SUPRA Bridge Module
