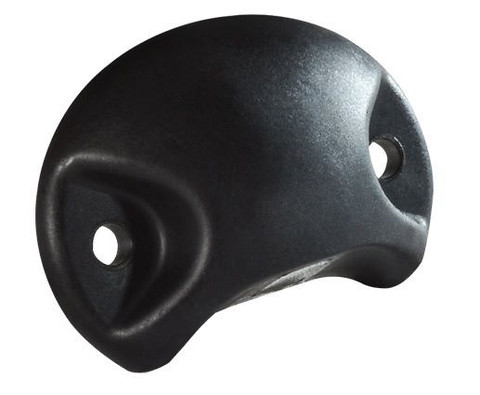

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Barbados — Courtesy/Accent Red LED Light Black Housing 12v
Model: 101061Originally engineered for military application, our robust, high-output Barbados light is popular with marine and industrial customers alike because of its amazing performance and clean lines. Extremely durable composite housing. Smooth rounded profile to avoid snagging pant cuffs, lines, or clothing, Barbados is the ideal for lighting toe kicks on stairwells. Thoughtfully designed to cover a DPT-02 Deutsch connector hole.
Specifications| Amps | 45mA @12vDC |
| Correlated Corrected Temperature (CCT) | 5000 |
| CE Certified | Yes |
| Color Match Commitment (CM) | Yes |
| Color Output | Red |
| Color Rendering Index (CRI) | 70+ |
| Depth | 0.52in (1.33cm) |
| Height | 1.28in (3.25cm) |
| Width | 1.81in (4.60cm) |
| Lumens | 45 |
| Operating Temp F/C | -31/35 to +131/55 |
| PLI Enabled | No |
| Related Watts | 0.55 |
| Third Party Dimmer Compatibility (3PD) | Yes |
| Timed Toggled Protocol (TTP) | No |
| UL Certified | No |
| Voltage | 10-16vDC |
| IP Rating | 67 |
